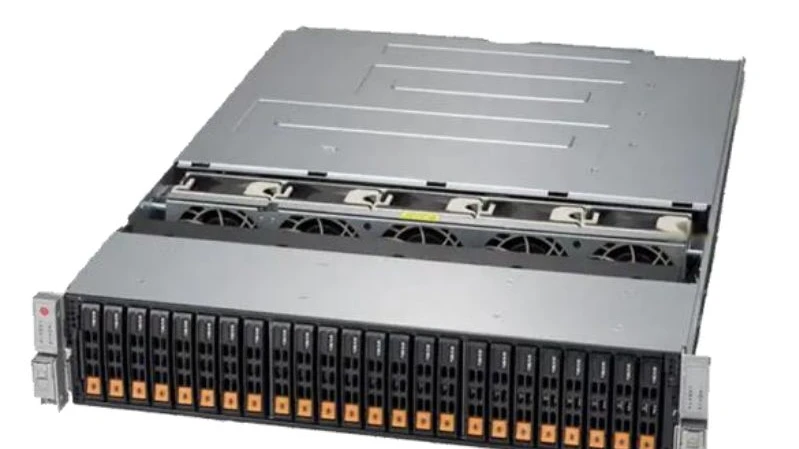

BS270G3-D
2U high-performance dual-node storage server equipped with 2nd Gen Intel Xeon Scalable processors, supporting up to 3TB memory capacity per node; features 3 PCIe 3.0 expansion slots and 24 2.5-inch hot-swappable dual-port NVMe drive bays, providing massive storage space and fast data read/write performance; supports rapid elastic failover and recovery at node level to improve system reliability and stability.
Model_RefBS270G3-D
Category_Id存儲
Build_Status: OnlineUUID: 28
Status: AvailableBUILD_UUID: 28
Specifications
| Form Factor / Form Factor | 2U Rackmount |
|---|---|
| Node / Node | 2 Node |
| Processor / Processor | 2nd Gen Intel Xeon Scalable Processor; Support CPU TDP Up to 165W |
| Socket / Socket | 2 Socket P (LGA 3647) per Node |
| Chipset / Chipset | Intel C624 |
| Memory / Memory | Up to 12 DIMM slots per Node Up to 3TB: 32x 256GB DRAM per Node |
| Memory Type / Memory Type | Support 2933MHz ECC DDR4 RDIMM or LRDIMM Support Intel Optane DCPMM |
| Storage / Storage | 24x 2.5" hot-swap dual-port NVMe drive bays ; 1 M.2 NVMe/SATA3 per Node ; 2 Industrial SATA-DOM per Node |
| SATA / SATA | Support SATA3(6Gb) RAID 0/1 with Intel VROC |
| PCIe Slots / PCIe Slots | 2 PCIe 3.0 x16 HHHL slots per Node 1 PCIe 3.0 x16 SIOM slots |
| Network / Network | 2 RJ45 10GBaseT LAN ports per Node ; 1 PCIe 3.0 x16 slots for SIOM with NCSI |
| PSU / PSU | 2x 2000W Redundant Power supply, Titanium Level |
| Dimensions / Dimensions | Height: 89 mm (3.5") Width: 437 mm (17.2") Depth: 650 mm (25.6") |
