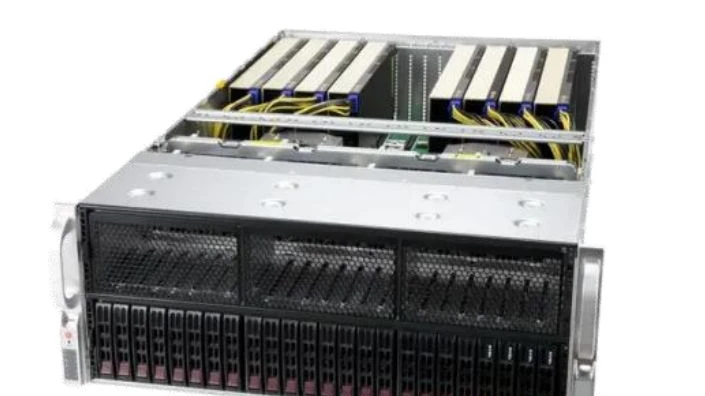

BC445G3-P
4U high-performance computing GPU server optimized for AI and deep learning tasks, equipped with dual AMD EPYC™ 7002/7003 series processors; supports up to 8 double-wide GPUs for powerful computing performance; features 8TB ECC DDR4 memory, up to 24 hot-swappable drive bays and redundant power supplies to ensure excellent performance and reliability; leverages direct-connect technology and PCIe 4.0 slots for high-speed data processing of demanding workloads.
Model_RefBC445G3-P
Category_Id伺服器
Build_Status: OnlineUUID: 25
Status: AvailableBUILD_UUID: 25
Specifications
| Form Factor / Form Factor | 4U Rackmount |
|---|---|
| Processor / Processor | AMD EPYC 7003/7002 Series Processors; Support CPU TDP 280W |
| Socket / Socket | Socket SP3 |
| Memory / Memory | Up to 32 DIMM slots Up to 8TB: 32x 256GB DRAM |
| Memory Type / Memory Type | Support 3200MHz ECC DDR4 RDIMM or LRDIMM |
| Storage / Storage | 24x 2.5" hot-swap SATA/SAS drive bays (4x 2.5" NVMe Support) |
| SATA / SATA | Support 2x 2.5" SATA in RAID 1 via onboard Marvell 9230 |
| PCIe Slots / PCIe Slots | 10 PCIe 4.0 x16 FHHL slots |
| GPUs / GPUs | 8 |
| CPU-GPU Interconnect / CPU-GPU Interconnect | Double/Single-Width PCI-E 3.0/4.0 x16 FHFL Card |
| GPU-GPU Interconnect / GPU-GPU Interconnect | PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root |
| Network / Network | 2x 1GbE BaseT with Intel I350 ; 1 PCIe 4.0 x16 slots for AIOM(OCP 3.0) with NCSI |
| PSU / PSU | 4x 200W Redundant Titanium Level Power Supply Unit |
| Dimensions / Dimensions | Height: 178mm (7") Width: 437mm (17.2") Depth: 737mm (29") |
