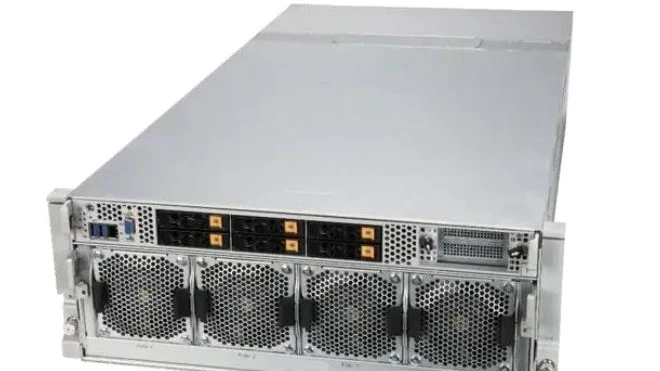

BC445G3-N
4U high-performance computing GPU server integrated with NVIDIA® HGX™ A100 8-GPU, featuring NVIDIA® NVLINK™ v3.0 and NVIDIA® NVSwitch™ for high-speed communication between GPUs; equipped with dual AMD EPYC™ 7003/7002 series processors; supports up to 10 U.2 NVMe 2.5" drives; provides rich PCIe 4.0 expansion interfaces to meet high-performance model computing requirements.
Model_RefBC445G3-N
Category_Id伺服器
Build_Status: OnlineUUID: 26
Status: AvailableBUILD_UUID: 26
Specifications
| Form Factor / Form Factor | 4U Rackmount |
|---|---|
| Processor / Processor | AMD EPYC 7003/7002 Series Processors; Support CPU TDP 280W |
| Socket / Socket | Socket SP3 |
| Memory / Memory | Up to 32 DIMM slots Up to 8TB: 32x 256GB DRAM |
| Memory Type / Memory Type | Support 3200MHz ECC DDR4 RDIMM or LRDIMM |
| Storage / Storage | 6x 2.5" hot-swap NVMe/SATA/SAS drive bays 4x 2.5" NVMe only drive bays real (Optional) |
| SATA / SATA | Support 2x 2.5" SATA in RAID 1 via onboard Marvell 9230 |
| PCIe Slots / PCIe Slots | 8 PCIe 4.0 x16 FHHL slots |
| GPUs / GPUs | 8 |
| Supported GPUs / Supported GPUs | HGX A100 8-GPU 40GB/80GB SXM4 Multi-GPU Board |
| CPU-GPU Interconnect / CPU-GPU Interconnect | PCI-E Gen 4 x16 Switch CPU-to-GPU Interconnect |
| GPU-GPU Interconnect / GPU-GPU Interconnect | NVIDIA NVLink with NVSwitch GPU-GPU Interconnect |
| Network / Network | 1 PCIe 4.0 x16 slots for AIOM(OCP 3.0) with NCSI |
| PSU / PSU | 4x 2200W Redundant Titanium Level Power Supply Unit |
| Dimensions / Dimensions | Height: 174mm (6.9") Width: 446mm (17.6") Depth: 900mm (35.4") |
