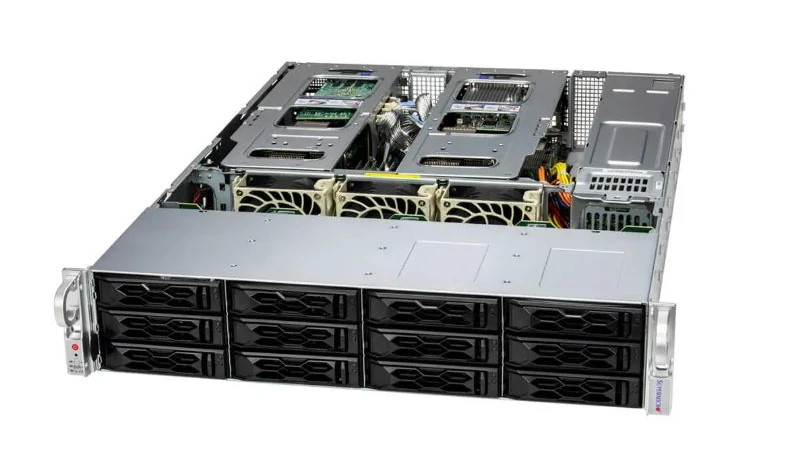

BC220G3-S
2U general-purpose compute server equipped with 3rd Gen Intel Xeon Scalable processors, supporting up to 270W CPU TDP. It offers rich storage and expansion options, with up to 16 DIMM slots supporting a total of 4TB DDR4 memory. It features 12 3.5-inch hot-swappable drive bays, supporting both SATA3 and NVMe RAID, making it ideal for large-scale data processing and storage requirements. The server is equipped with two 1200W redundant Titanium-level power supply units.
Model_RefBC220G3-S
Category_Id伺服器
Build_Status: OnlineUUID: 18
Status: AvailableBUILD_UUID: 18
Specifications
| Form Factor / Form Factor | 2U Rackmount |
|---|---|
| Processor / Processor | 3rd Gen Intel Xeon Scalable Processor; Support CPU TDP Up to 270W |
| Socket / Socket | 2 Socket P+(LGA-4189) |
| Chipset / Chipset | Intel C621 |
| Memory / Memory | Up to 16 DIMM slots Up to 4TB: 16x 256GB DRAM |
| Memory Type / Memory Type | Support 3200MHz ECC DDR4 RDIMM or LRDIMM Support Intel Optane Persistent Memory 200 Series |
| Storage / Storage | 12x 3.5" hot-swap NVMe/SATA/SAS drive bays ; 2 M.2 NVMe |
| SATA / SATA | Support SATA3(6Gb) RAID 0/1/5/10 with Intel VROC |
| NVMe / NVMe | Support NVMe RAID 0/1/5/10 with Intel VROC |
| PCIe Slots / PCIe Slots | 4 PCIe 4.0 x8 FHHL slots 2 PCIe 4.0 x16 FHHL slots |
| Network / Network | 2 PCIe 4.0 x16 slots for AIOM(OCP 3.0) with NCSI |
| PSU / PSU | 2x 1200W Redundant Titanium Level Power Supply Unit |
| Dimensions / Dimensions | Height: 89 mm (3.5") Width: 437 mm (17.2") Depth: 647 mm (25.5") |
