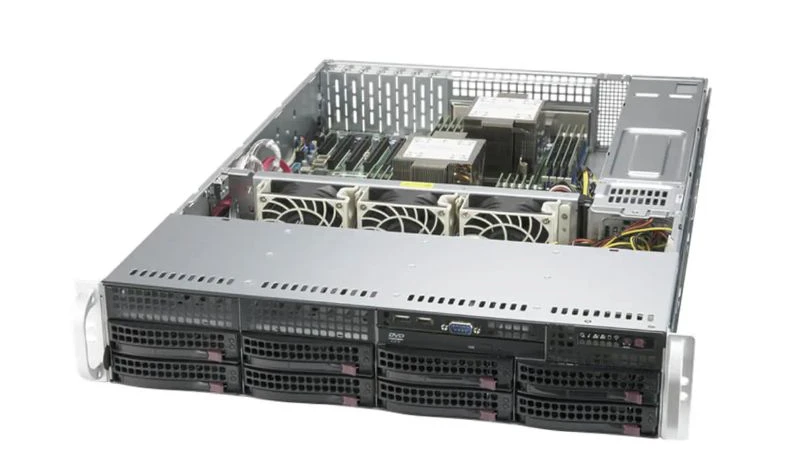

BC220G3
2U general-purpose compute server equipped with 3rd Gen Intel Xeon Scalable processors; supports up to 4TB memory with 16 DIMM slots, compatible with 3200MHz ECC DDR4 RDIMM or LRDIMM; features 8×3.5" hot-swappable SATA/SAS drive bays and 1×M.2 NVMe slot; includes 2×PCIe 4.0 x8 LP slots and 4×PCIe 4.0 x16 LP slots to meet high-speed data transmission and expansion requirements.
Model_RefBC220G3
Category_Id伺服器
Build_Status: OnlineUUID: 16
Status: AvailableBUILD_UUID: 16
Specifications
| Form Factor / Form Factor | 2U Rackmount |
|---|---|
| Processor / Processor | 3rd Gen Intel Xeon Scalable Processor; Support CPU TDP Up to 270W |
| Socket / Socket | 2 Socket P+(LGA-4189) |
| Chipset / Chipset | Intel C621 |
| Memory / Memory | Up to 16 DIMM slots Up to 4TB: 16x 256GB DRAM |
| Memory Type / Memory Type | Support 3200MHz ECC DDR4 RDIMM or LRDIMM Support Intel Optane Persistent Memory 200 Series |
| Storage / Storage | 8x 3.5" hot-swap SATA/SAS drive bays ; 1 M.2 NVMe |
| SATA / SATA | Support SATA3(6Gb) RAID 0/1/5/10 with Intel VROC |
| NVMe / NVMe | Support NVMe RAID 0/1/5/10 with Intel VROC |
| PCIe Slots / PCIe Slots | 2 PCIe 4.0 x8 LP slots 4 PCIe 4.0 x16 LP slots |
| Network / Network | 2x 1GbE Ports |
| PSU / PSU | 2x 1200W Redundant Titanium Level Power Supply Unit |
| Dimensions / Dimensions | Height: 89 mm (3.5") Width: 437 mm (17.2") Depth: 647 mm (25.5") |
