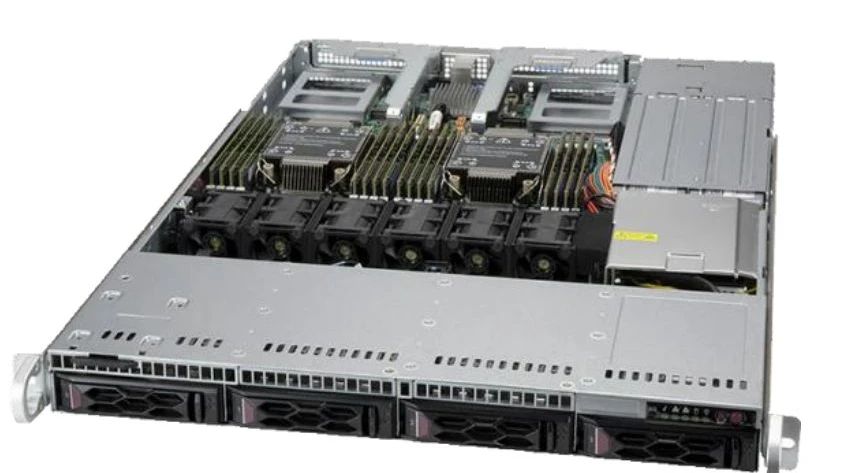

BC120G3
1U general-purpose compute server equipped with dual 3rd Gen Intel® Xeon® Scalable processors and Intel C621A chipset. Supports PCIe 4.0 protocol and provides up to 16 DDR4 memory slots running at 3200MT/s. The front panel supports 4×3.5-inch SATA/SAS or 8×2.5-inch SATA/SAS + 2×2.5-inch/NVMe/SATA/SAS hot-swappable hard drives to meet various computing requirements.
Model_RefBC120G3
Category_Id伺服器
Build_Status: OnlineUUID: 14
Status: AvailableBUILD_UUID: 14
Specifications
| Form Factor / Form Factor | 1U Rackmount |
|---|---|
| Processor / Processor | 3rd Gen Intel Xeon Scalable Processor; Support CPU TDP Up to 270W |
| Socket / Socket | 2 Socket P+(LGA-4189) |
| Chipset / Chipset | Intel C621A |
| Memory / Memory | Up to 16 DIMM slots Up to 4TB: 16x 256GB DRAM |
| Memory Type / Memory Type | Support 3200MHz ECC DDR4 RDIMM or LRDIMM |
| Storage / Storage | 2 M.2 NVMe |
| SATA / SATA | Support SATA3(6Gb) RAID 0/1/5/10 with Intel VROC |
| NVMe / NVMe | Support NVMe RAID 0/1/5/10 with Intel VROC |
| PCIe Slots / PCIe Slots | 2 PCIe 4.0 x16 FHHL slots |
| Network / Network | 2 PCIe 4.0 x16 slots for AIOM(OCP 3.0) with NCSI |
| PSU / PSU | 2x 860W Redundant Platinum Level Power Supply Unit |
| Dimensions / Dimensions | Height: 43 mm (1.7") Width: 437 mm (17.2") Depth: 650 mm (25.6") |
